100m Outdoor Long Laser Distance Module BA6A Automotive High-Precision USB LiDAR Sensor

Key Advantages:

>1 High accuracy: up to +-3mm

>2 Low power consumption.

>3 Long range measurement distance: 100m

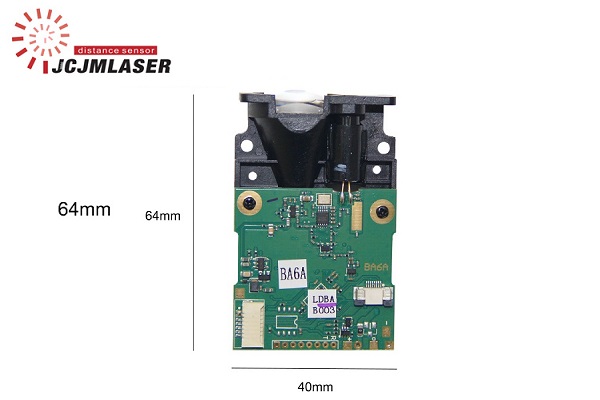

>4 Small size: 64*40*18mm

The Long laser distance module series is designed for outdoor using. The BA6A is our new model of B605B/B707C laser distance sensor. The LiDAR sensor is a high precision range of radar sensor.With +-3mm accuracy, the lidar module can measure up to 100m.

It is widely used in many industrial and field measurement and monitoring applications,including automotive,sports,education industry, according to the laser range sensor can be used normally indoors and outdoors.

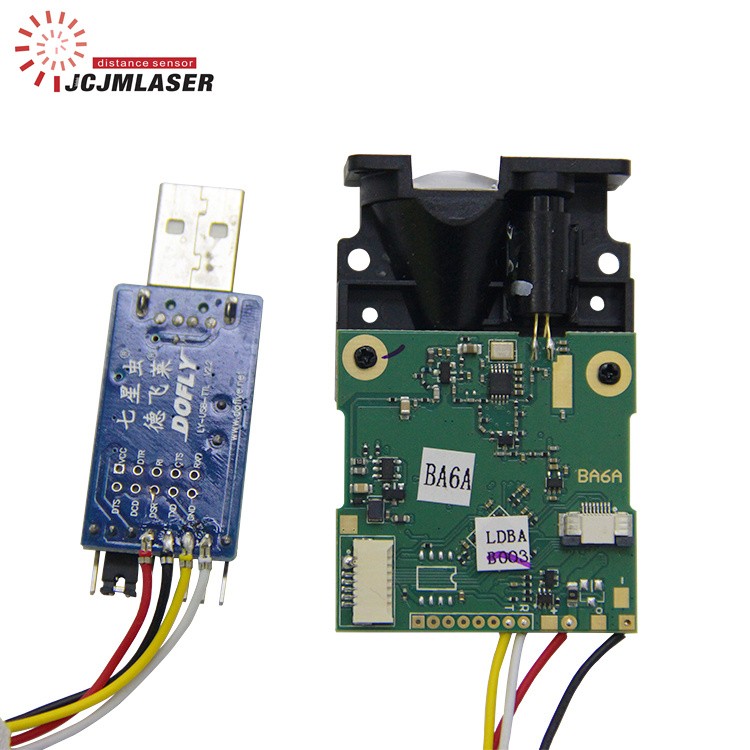

Suggest you choosing the USB interface, so you can test easily via connecting to your computer.

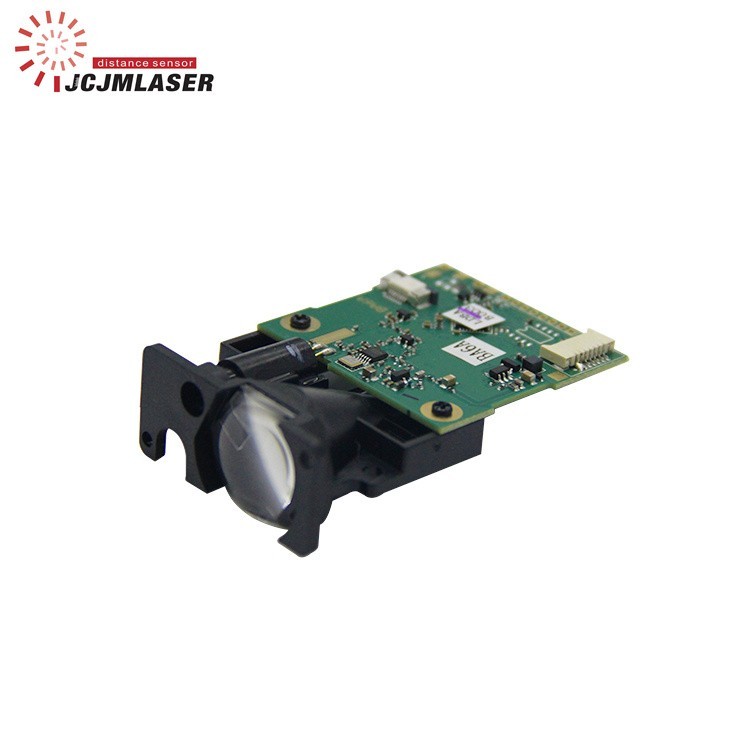

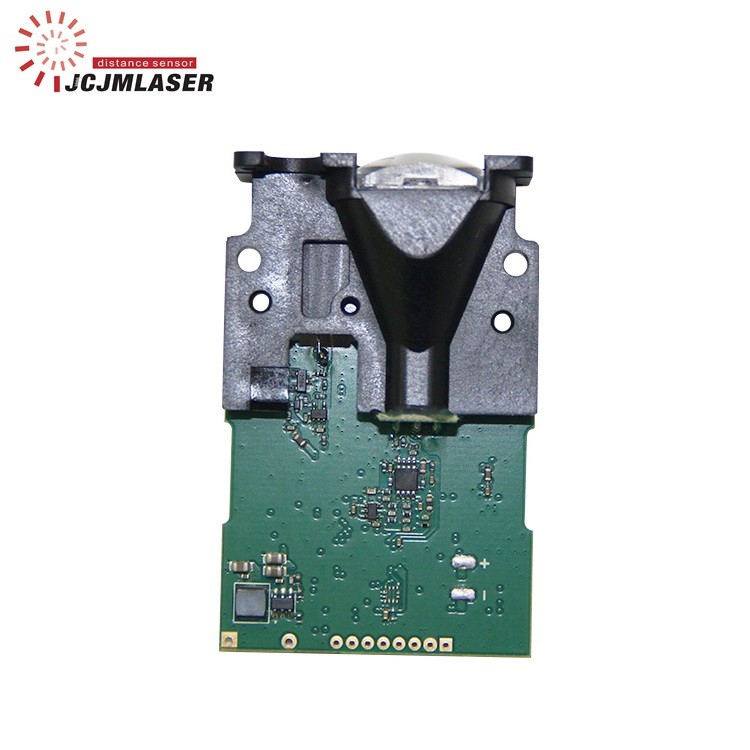

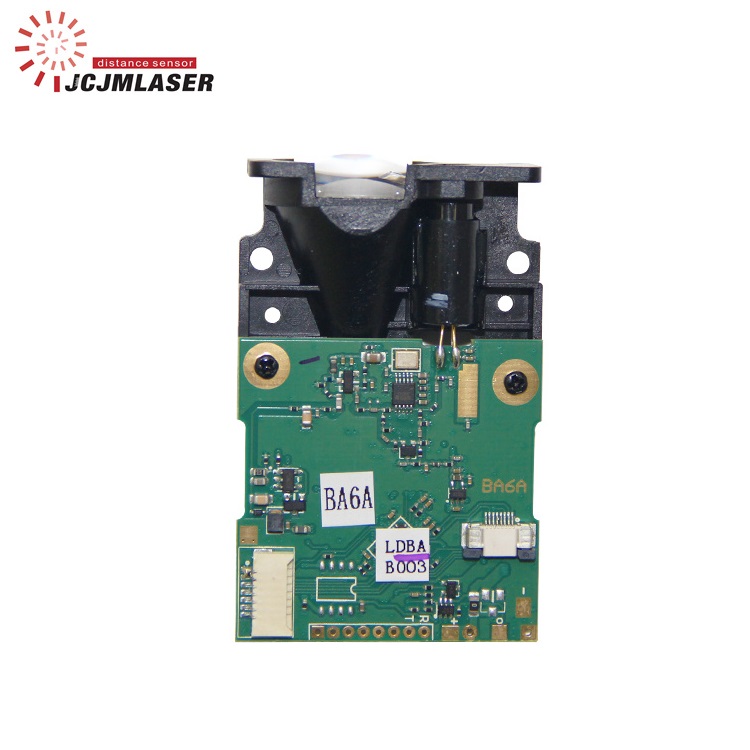

100m Laser Distance Module BA6A Pictures

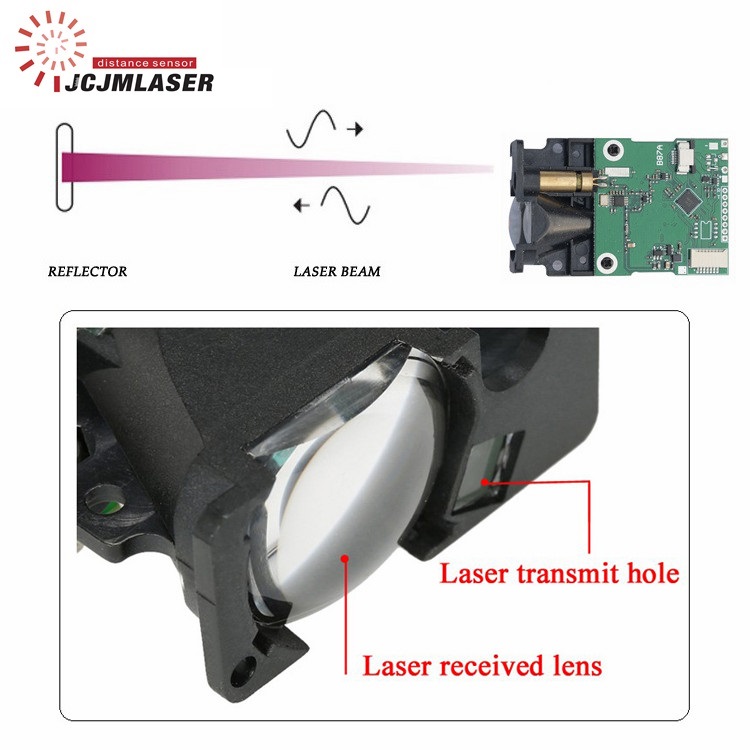

100m Laser Distance Module BA6A Working Principle

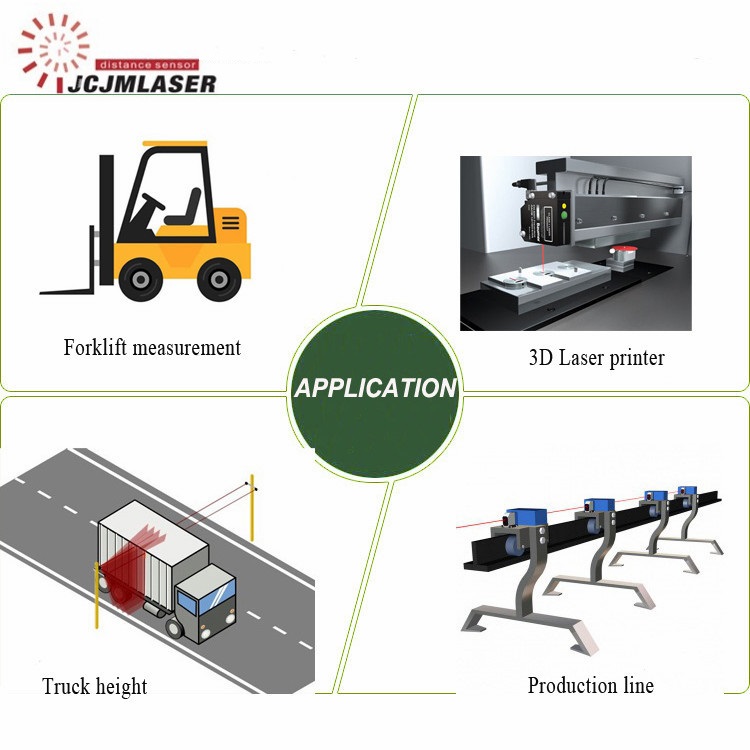

100m Laser Distance Module BA6A Applications

Chengdu JCJM Main Distance Sensors: Industrial Laser Distance Sensor, IP68 Series Distance Sensor, LiDAR Sensor, Long Laser Distance Module.

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
