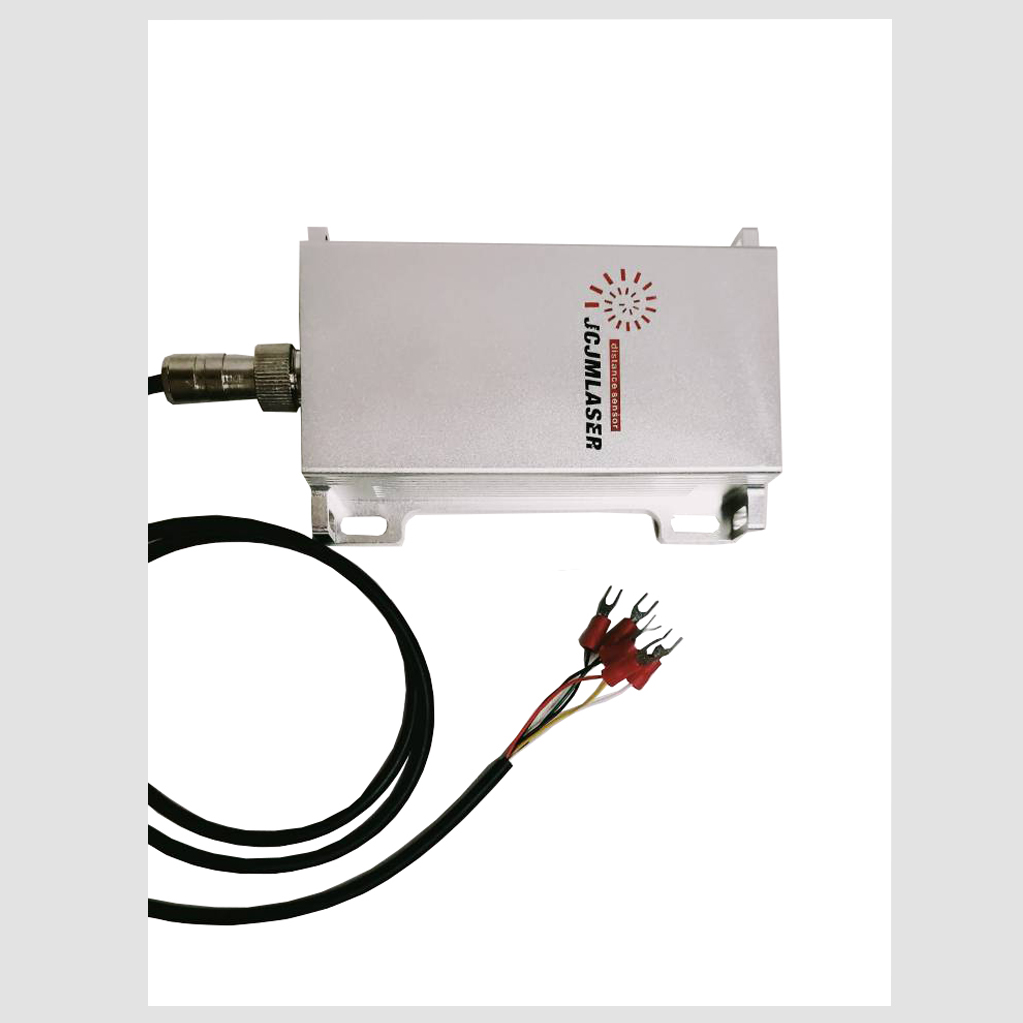

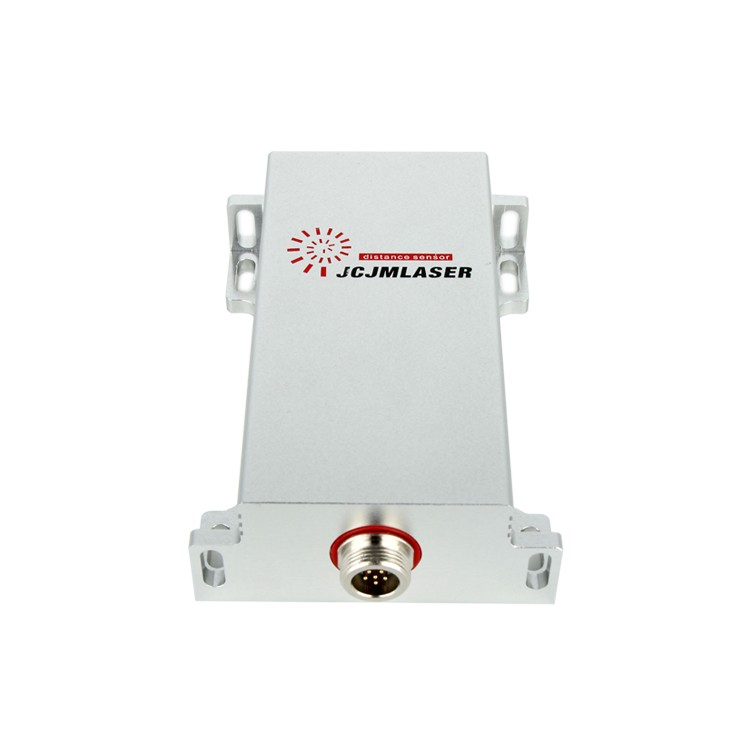

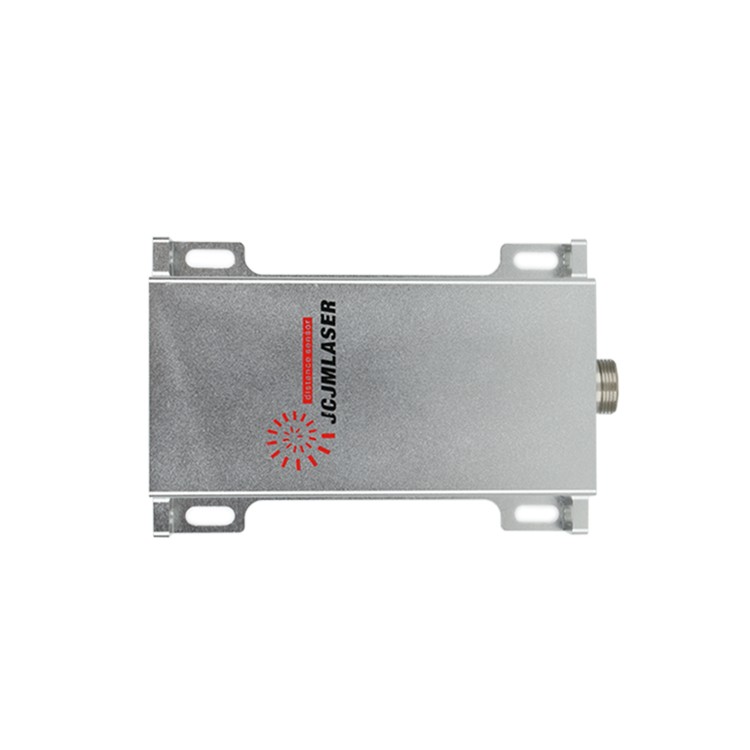

Product Description

Product description:

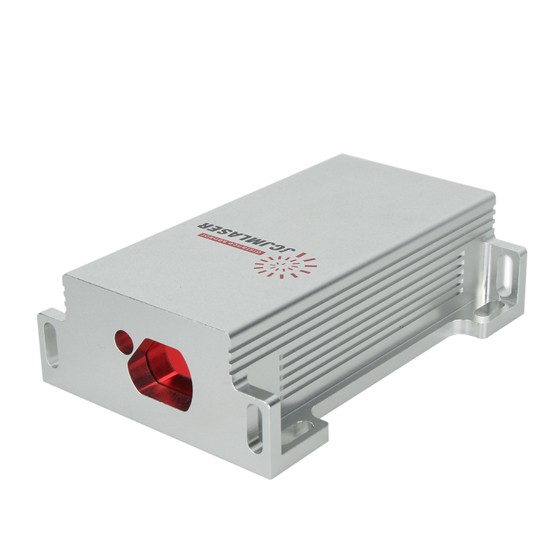

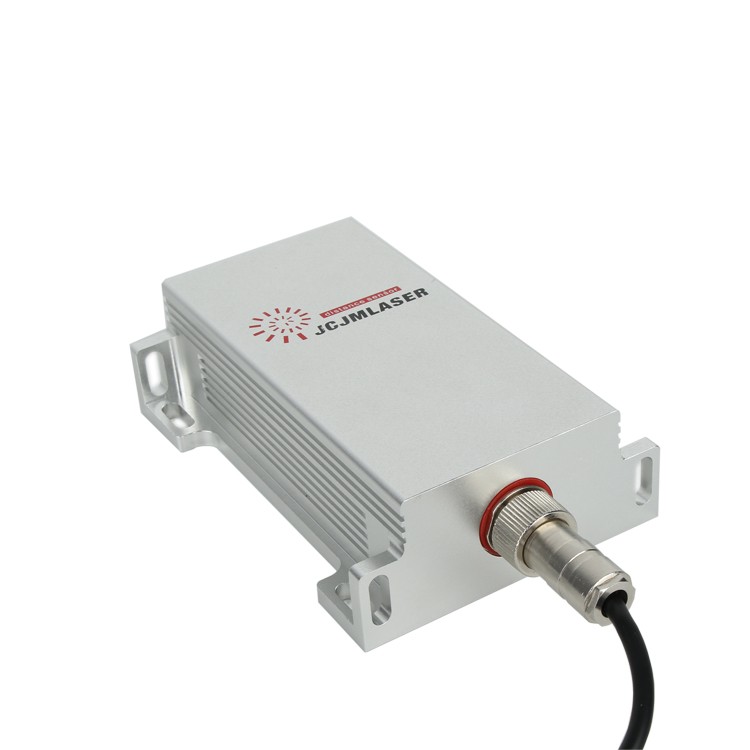

JCJM laser distance measuring sensor is a new generation of non-contact, high-precision distance measuring equipment. Its powerful and sturdy structure is designed for industrial and field measurement and monitoring. The phase-based ranging method has amazing testing accuracy and high stability, and IP67 protection level. The laser range sensor can be used normally indoors and outside. It is an ideal instrument for industrial automation and intelligent production management. Industrial laser distance sensor adopts phase laser ranging principle, serial port asynchronous communication, supports TTL level, IP67 protection level.

     In order to meet customers' requirements for measurement accuracy and reliability of measurement data, JCJM has been committed to the production and development of laser measurement sensors. Our laser ranging sensors are intelligent, convenient, high-precision, and small in size. JCJM is a factory focusing on industrial laser distance sensors. Our laser distance sensor can reach the highest IP68 protection level, dust-proof, waterproof, drop-proof and crash-proof, and can be measured without blind spots. The accuracy is millimeter level and the measurement range is wide (20 Meters, 60 meters, 80 meters, 100 meters, 120 meters, 150 meters, 200 meters), can be applied to a variety of industrial environments. It can not only connect RS485, USB, RS232, etc., but also can be applied to Arduino, Raspberry PI, MCU, etc.

        Chengdu JCJM has been focusing on industrial laser measurement sensors for 10 years. It has a strong R & D team and service team that can help customers customize solutions for different needs and provide customers with continuous technical support and after-sales service.

Features:

1. The sensor supports data communication: serial port / RS485/USB / RS232; 2. IP65 / 68 super strong protection level, can be used stably in dusty and humid environment; 3. supports customized scheme; 4. supports working temperature -10 ° C-50 ° C; 5. No dead zone measurement.

Precautions:

The laser distance measuring sensor is a laser type distance measuring product. The laser level is two-level safety. Do not direct the eyes when using it. Do not face the sun.

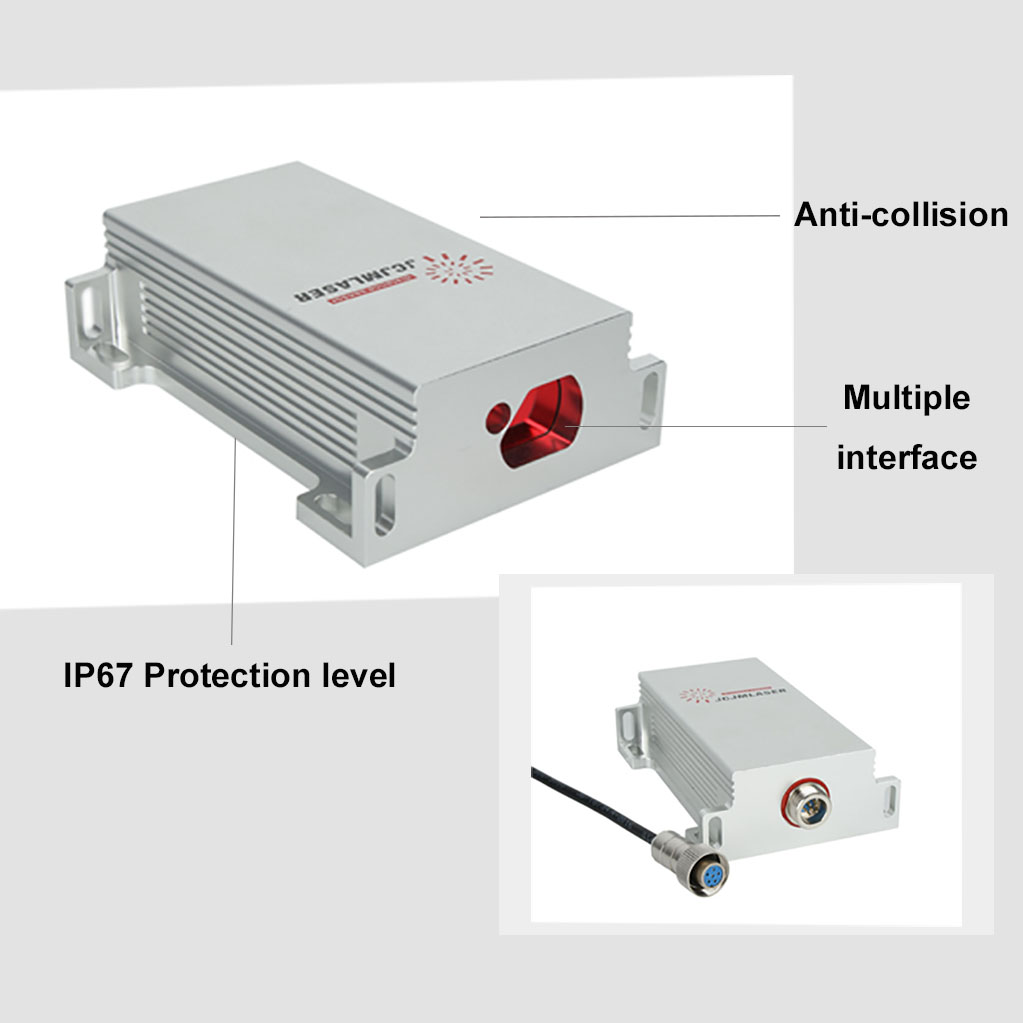

Product Features

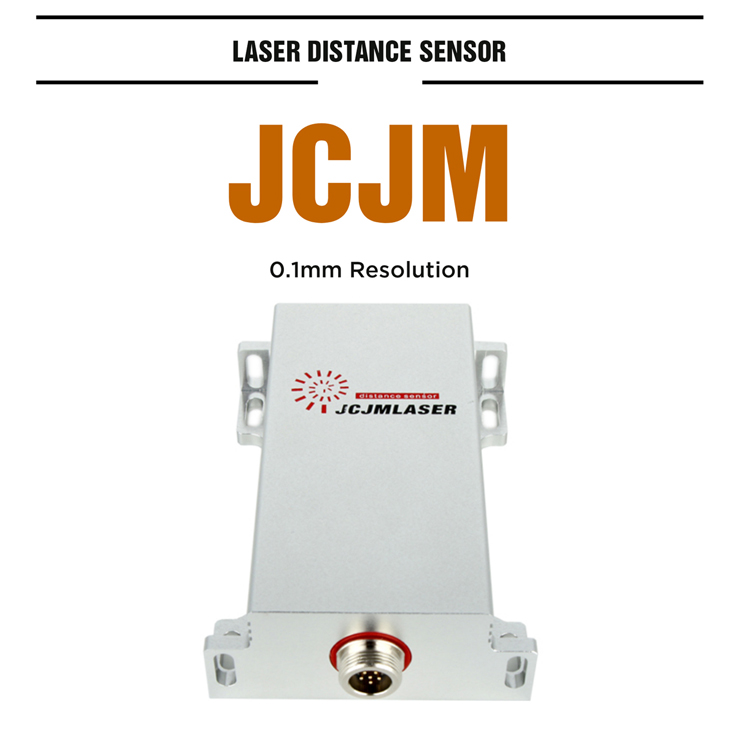

0.1mm resolution

The high-resolution laser ranging sensor can be applied to the safety monitoring of object settlement. By monitoring the target length and height, the relevant information of the detection target can be obtained in time and accurately, and hidden dangers that may affect the structure and track quality are detected in time, and countermeasures are taken to ensure Safe to run.

-10 ° C ~ 50 ° C working environment

Has good heat dissipation and can be used normally in high and low temperature environments

80m measurement distance

Can measure targets as far as 80m away, with an error of about 1mm

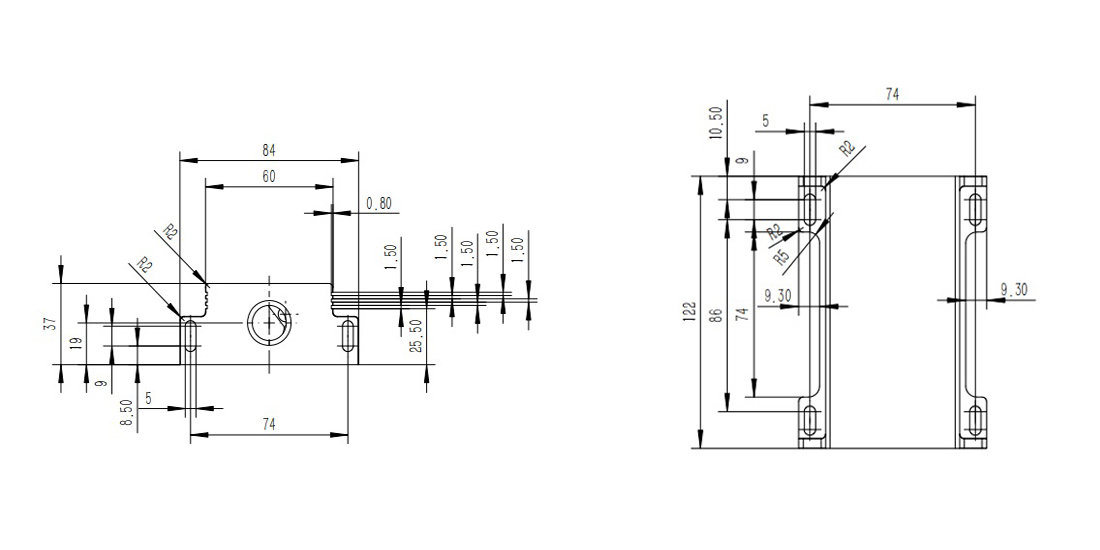

Structure diagram

Application

Why Us

Service

1. One year warranty.

2. Fast delivery.

3. Quality control team.

4. Customized services are available.

5. Lifetime technical support.

note:

1. Under bad measurement conditions (such as excessive ambient light, excessive or too small diffuse reflection coefficient of the measured point), the measurement accuracy will have a large error: ±1mm.

2. In case of strong sunlight or poor reflection of the target, please use the reflector.
